A9CAD

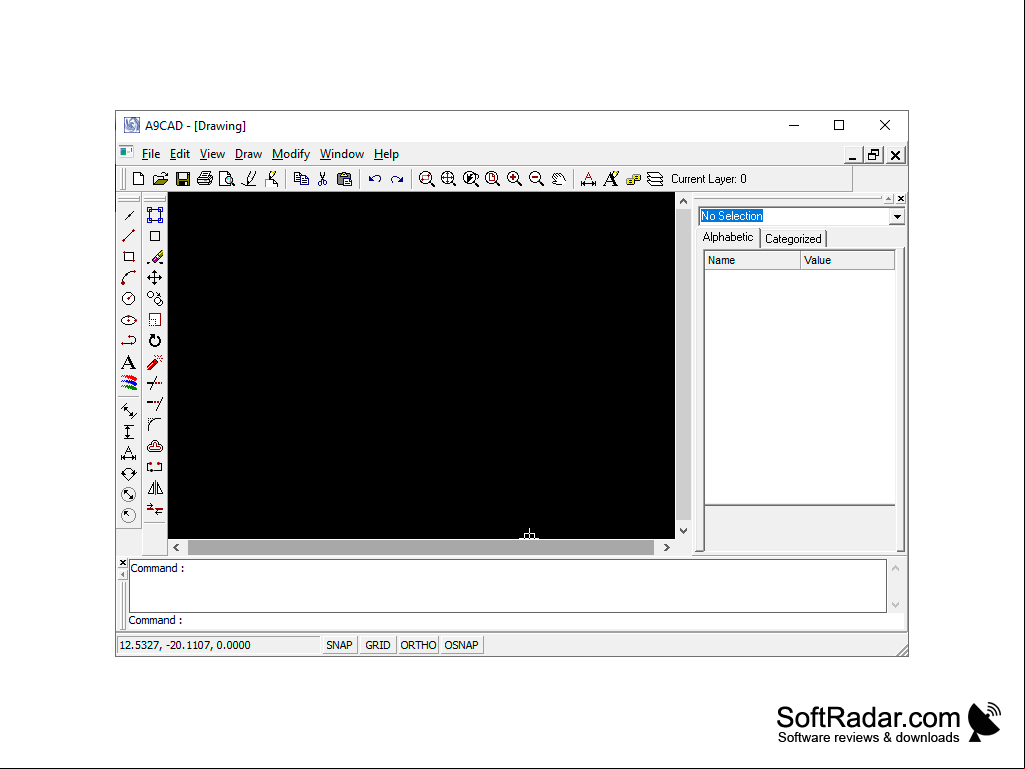

A9CAD is a compact enough system of the automated deg (CAD) intended for modelling of two-dimensional objects and ing editing of 2D-drawings of formats DWG and DXF.

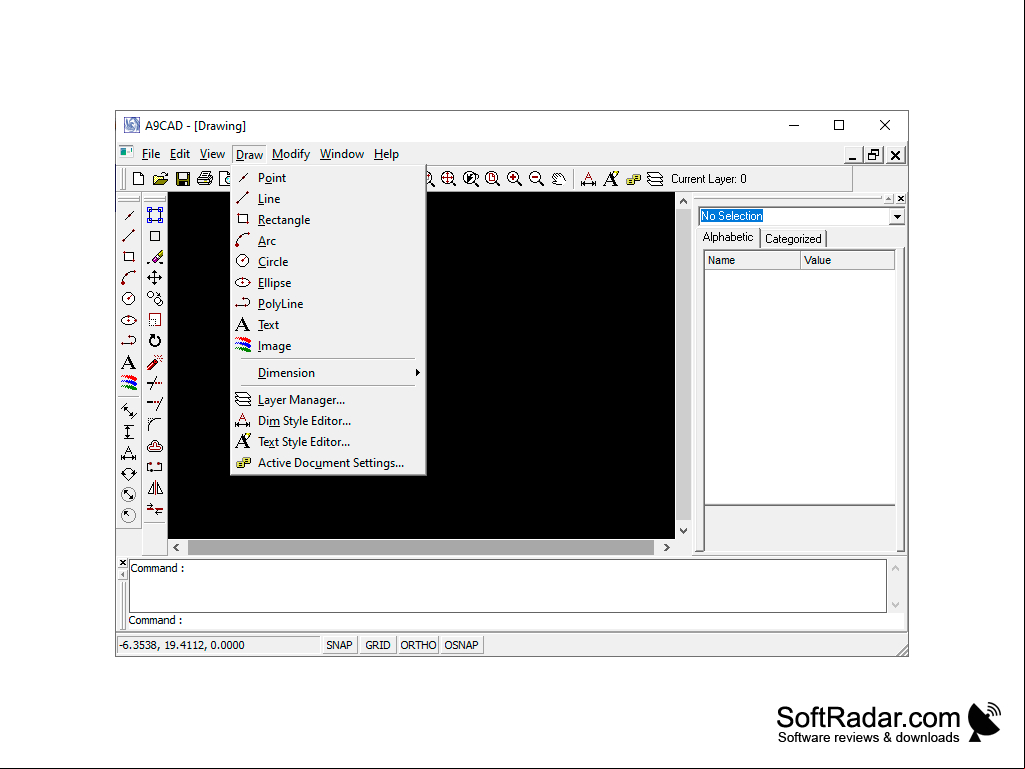

Due to the presence of a large number of tools and special parameters in the interface, it can cause some difficulties at first glance. A9CAD allows you to draw graphical primitives on drawings: circles, lines, rectangles, friends, ellipses, etc. It is possible to change the object's attributes: line type, color, rotation angle, text style and many others.

A9CAD allows efficient 2D object modeling and editing with an array of tools, maintaining high-quality drawings without critically loading computer's processor and memory.

Like most CAD programs, the A9CAD s copying, moving, rotating and deleting selected objects. It is possible to divide into several smaller parts, as well as the function of trimming or connecting several objects.

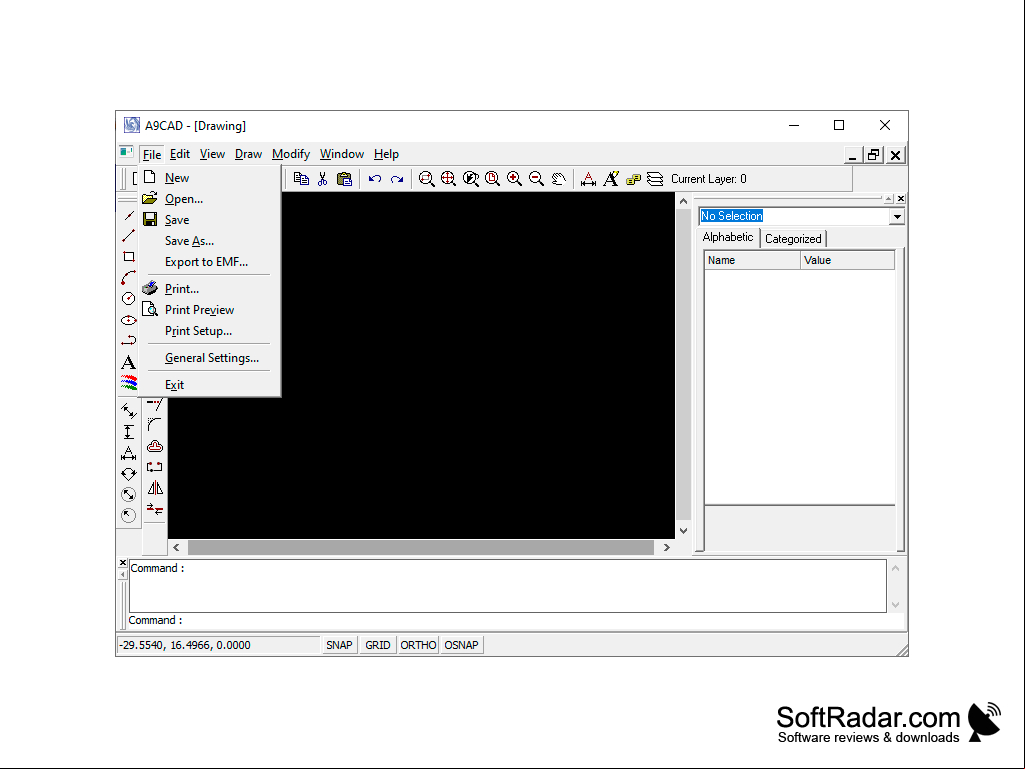

The finished drawing can be exported to an EMF file or printed directly from the program. While creating a project, you can work simultaneously with several layers, undo or repeat the last actions, zoom in and out, and load the necessary images into it.

Due to the compactness of the application, which we have already mentioned, the A9CAD does not create a critical load on the processor and memory, almost without affecting the overall performance of the computer, and provides a very good quality of drawing objects. Summing up, it is possible to tell that this free and simple enough program quite deserves to spend small time for studying its interface and adjustment of the further working process.
